Stainless Steel Check Valves

Stainless Steel is the short name for Stainless Acid-resistant Steel. The steel which resistant to air, steam, water, and other weak corrosion medium or Stainless Steel is called Stainless Steel; and which resistant to chemical corrosion medium (acid, alkali, salt, and other chemical etching) corrosion of steel is called acid-resistant steel.

According to their different texture, Stainless steel is often divided into martensitic steel, ferrite steel, austenitic steel, austenitic - ferrite (dual-phase) stainless steel, and precipitation hardening stainless steel.

The composition can be divided into chromium stainless steel, chromium-nickel stainless steel, and chromium manganese nitrogen stainless steel.

WSV valves company mainly supplies Austenitic.


01/06
Stainless Steel Check Valves
02/06
Stainless Steel Check Valves

Features Of Stainless Steel Check Valves

Austenitic stainless steel refers to stainless steel with an austenitic structure at room temperature. When Cr is about 18%, Ni is about 8%~25%, C is about 0.1%, the steel has stable austenite structure. Austenitic Cr-Ni stainless steels include famous 18Cr-8Ni steels and high Cr-Ni series steels developed by adding Cr and Ni content and Mo, Cu, Si, Nb, Ti and other elements on this basis. Austenitic stainless steel is non-magnetic and has high toughness and plasticity, but the strength is low, it is impossible to strengthen through phase transformation, can only be strengthened through cold working, such as the addition of S, Ca, Se, Te, and other elements, it has good machinability.


Weidouli Stainless Check Valve Type

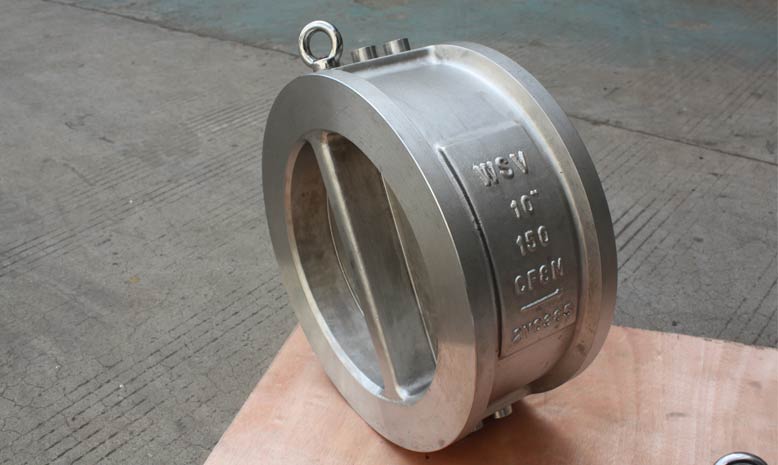

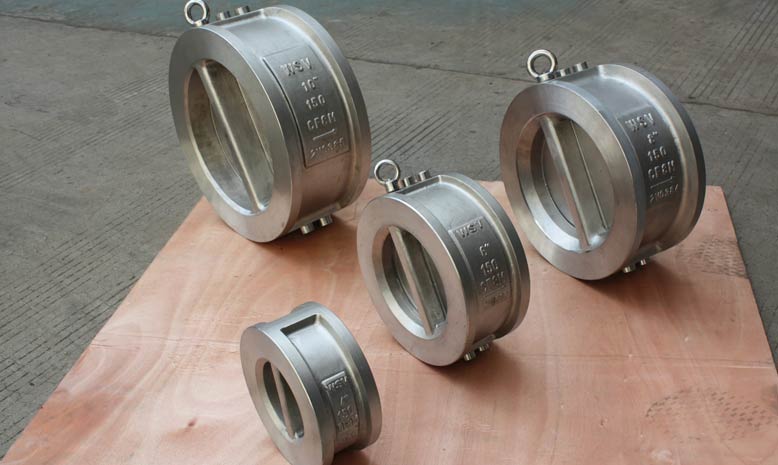

Dual plate check valve


Design Features

 JB/T 8937  & API 594  Design

* Wafer Type.

* End Connections: Flange RF, Wafer & Lug are all standard units

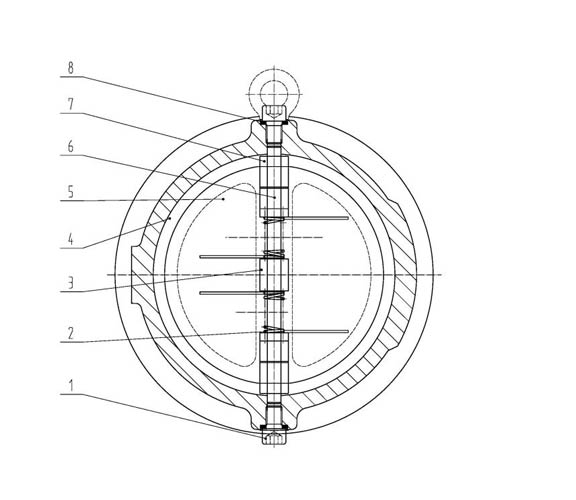

Parts & Material




No.

Part Name

Material

1

Screw

Stainless

2

Spring

Inconel X750

3

Locating cover

Stainless

4

Body

Stainless

5

Disc

Stainless

6

Pin

Stainless

7

Locating piece

Stainless

8

Gasket

PTFE



Stainless Steel Check Valves



Weidouli offer a comprehensive range of Stainless check valve for all types of applications and industries


The other available type of Weidouli Stainless check valve:

Stainless  pressure seal check valve

Stainless  nozzle check valve

Stainless  single plate check valve

Stainless  lift type check valve

Stainless  swing check valve
