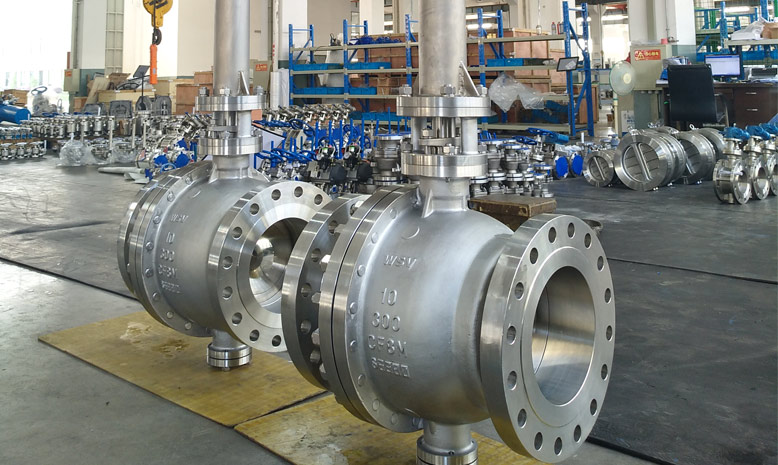

Stainless Steel Ball Valves

Stainless steel Ball Valves of Weidouli can withstand ultra-high pressure and ultra-high temperature, is widely used to control the flow of fluids such as air, water, steam, corrosive medium, mud, oil, liquid metal, and radioactive medium.


01/06
High Temperature Stainless Steel Ball Valves

Specification of Stainless Steel Ball Float Valve


  • Floating type or Trunnion type

  • Full bore or reduced bore

  • Side entry

  • Split body construction (2-PC or 3-PC)

  • Blow-out proof stem

  • Anti-static device

  • Fire-safe design or Non-fire safe design

  • Soft seated or metal seated

  • Ends: Flanged, Wafer, Thread, BW, SW

  • We offer different types of industrial valve that can be operated by: Lever, Gear, Electric actuator, Pneumatic actuator, Bare shaft

  • Design fully complies with ASME B16.34 or API 6D

  • Tested and inspected in accordance with API 598 or API 6D

  • Size/pressure produce range as below table, high pressure stainless steelball valves available.


Structure

CLASS

PN

SIZE RANGE (Inch)

DN (mm)

Floating Design

Class150

PN10-PN20

1/2"~10"

DN15-DN250

Class300

PN25-PN50

1/2"~8"

DN15-DN200

Class600

PN63-PN100

1/2"~6"

DN15-DN150

Class 800

/

1/2"~4"

DN15-DN100

Class900

PN160

1/2"~3"

DN15-DN80

Class1500

PN250

1/2"~2"

DN15-DN50

Trunnion Design

Class150

PN10-PN20

6"~40"

DN150~DN1000

Class300

PN25~PN50

4"~40"

DN100~DN1000

Class600

PN63-PN100

4"~40"

DN100~DN1000

Class900

PN160

4"~24"

DN100~DN600

Class1500

PN250

4"~24"

DN100~DN600



Application of Stainless Steel Flanged Ball Valves


  • Stainless steel hand ball valve is mainly used in the petrochemical industry, such as ethylene cracking device, polyethylene device and polypropylene device in ethylene production, PTA device (pure terephthalic acid), polyester device and polyester spinning device in chemical fiber production.

  • 304 and 304L stainless steel ball check valve are suitable for transportation in weak acid-base medium with less corrosion, such as nitric acid, fertilizer, benzene, oxygen, etc.

  • 316 and 316L hand operated valve is mainly used for medium transportation of strong acids and bases, such as acetic acid, hydrochloric acid, sulfuric acid, etc.
