Nickel Discharge Valves

Pure nickel is commercially pure (99.6%) wrought nickel.

Weidouli is a leading manufacturer of Pure nickel valves. Normally, Weidouli can supply Nickel 200 & Nickel 201 material valves.

01/06

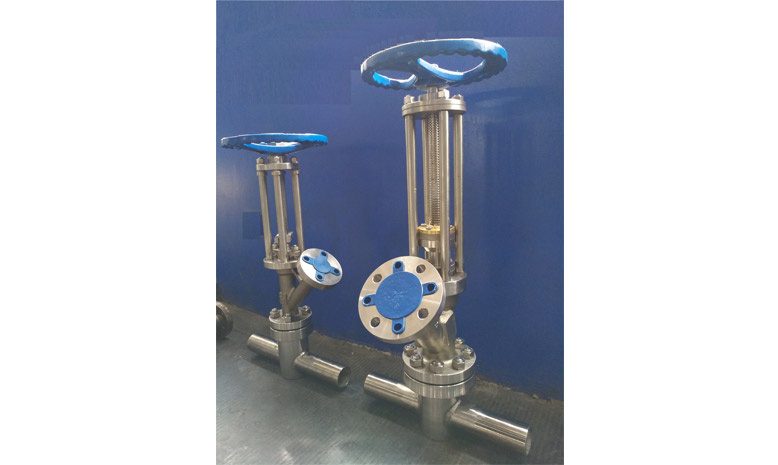

Nickel Discharge Valves

Material Features Of Nickel Discharge Valves

Pure nickel is extreme anti-corrosion under any densities and high temperature caustic alkaline solution, and the anti-alkali crack performance is outstanding. Mainly applies in high-temperature thick alkali corrosive medium condition.

It is distinguished by ductility, strength, and resistance to corrosion and heat. It resists corrosion even at high temperatures and concentrated alkali.

It also has good mechanical properties and excellent resistance to many corrosive environments.  Other useful features of the alloy are its magnetic and magnetostrictive properties, high thermal and electrical conductivity, low gas content, and low vapor pressure.


Weidouli Nickel Discharge Valves Type

Upward discharge valves


Design Features

  1. The gasket is placed in the concave groove of the valve body, the gasket can keep the elasticity for a long time and the sealing is reliable.

  2. Integral forging valve core design, with better strength.

  3. Enlarge the size of the stem and connection rod made the valves more stable and firm.

  4. Waist drum structure valve bodies have good streamline, it can increase flow capacity and reduce medium deposition.

  5. Spring-loaded packing design provides more reliable sealing and realizes packing seal online adjustment

  6. Valve core have guide device to protect the stem from deviation

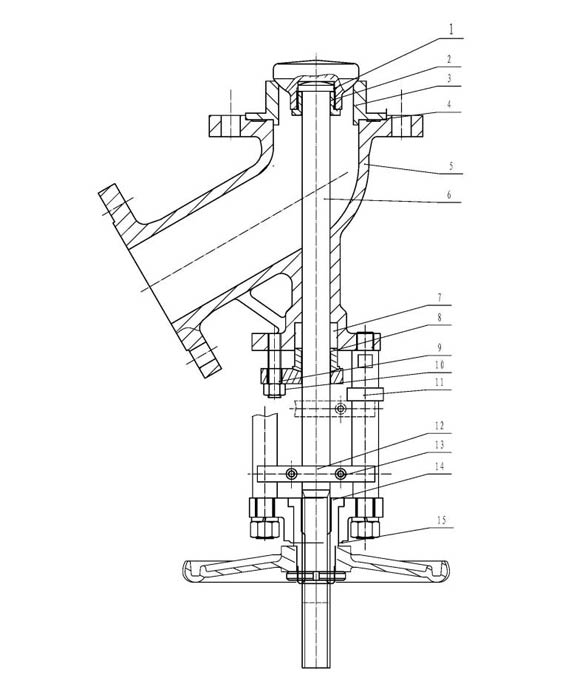

Parts & Material



No.

Part Name

Material

1

Disc

Hastelloy C276

2

Disc bonnet

Hastelloy C276

3

Seat

Hastelloy C276

4

Gasket

Hastelloy C276+Graphite

5

Body

Nickel

6

Stem

Hastelloy C276

7

Packing

Graphite

8

Gland bushing

Hastelloy C276

9

Stud

304

10

Hex nut

304

11

Prop

304

12

Guide plate

304

13

Screw

304

14

Stem nut

DAL9-4

15

Support seat

304



Nickel Discharge Valves




Weidouli also can supply downward discharge valves
