Monel Discharge Valves

Monel is a kind of corrosion-resistant alloy with the largest amount, the most extensive use, and excellent comprehensive properties, bearing excellent corrosion resistance in hydrofluoric acid and fluorine medium as well as in hot concentrated alkali solution.

01/06

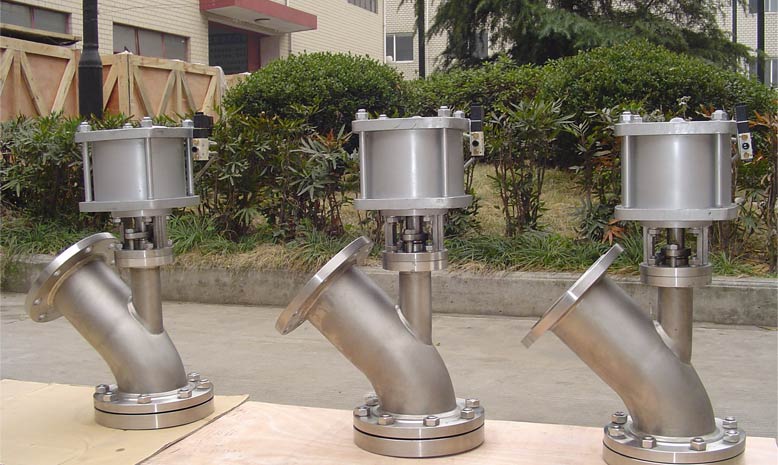

Monel Discharge Valves


Weidouli Monel discharge valves type

Upward discharge valves design Features:

  1. The gasket is placed in the concave groove of the valve body, the gasket can keep the elasticity for a long time and the sealing is reliable.

  2. Integral forging valve core design, with better strength.

  3. Enlarge the size of the stem and connection rod made the valves more stable and firm.

  4. Waist drum structure valve bodies have good streamline, it can increase flow capacity and reduce medium deposition.

  5. Spring-loaded packing design provides more reliable sealing and realizes packing seal online adjustment

  6. Valve core has a guide device to protect the stem from deviation

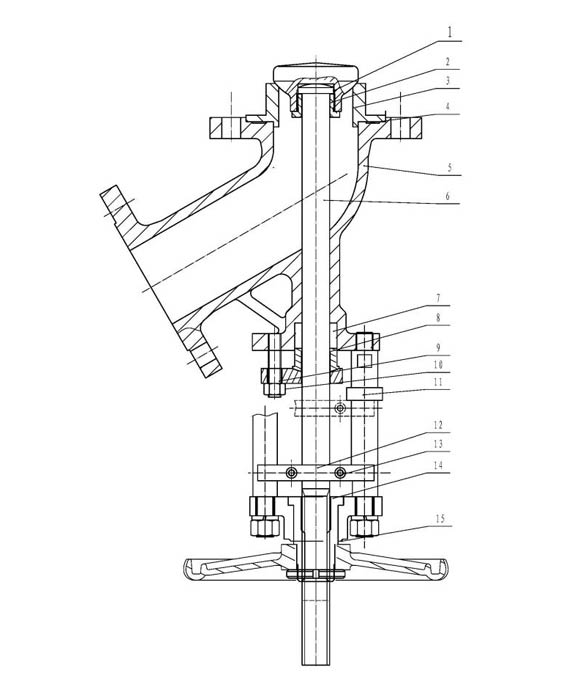

Parts & Material Of Monel Discharge Valves


No.

Part Name

Material

1

Disc

Monel

2

Disc bonnet

Monel

3

Seat

Monel

4

Gasket

Monel+Graphite

5

Body

Monel

6

Stem

Monel

7

Packing

Graphite

8

Gland bushing

Monel

9

Stud

304

10

Hex nut

304

11

Prop

304

12

Guide plate

304

13

Screw

304

14

Stem nut

DAL9-4

15

Support seat

304



Monel Discharge Valves
