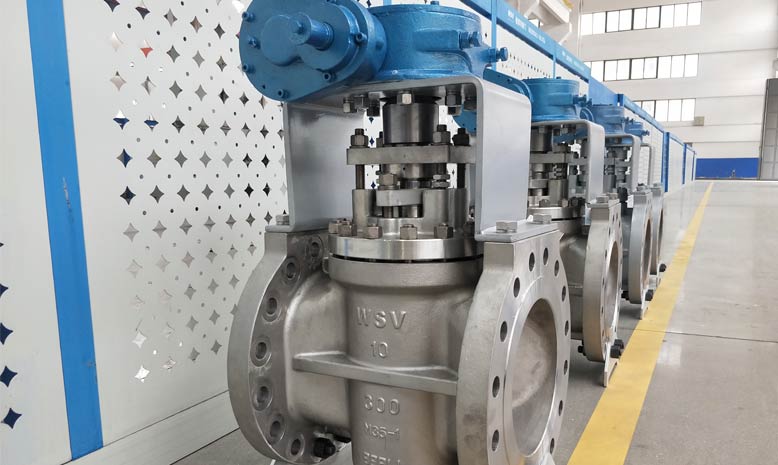

Monel Plug Valves

Monel is a group of nickel alloys with excellent corrosion resistance by many agents, in numerous acidic and alkaline conditions.

Weidouli Monel Plug Valves are engineered with investment casting, high-cycle, low emission service, double gland seal packing.

01/06
Monel Plug Valves

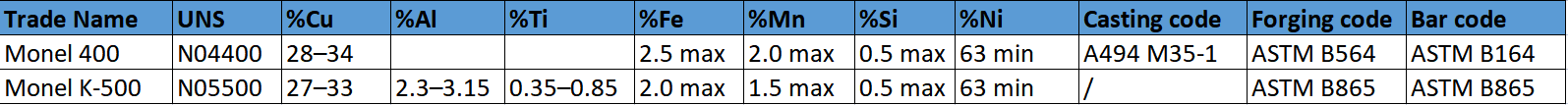

Monel Alloys Grades

Trade Name

UNS

%Cu

%Al

%Ti

%Fe

%Mn

%Si

%Ni

Casting code

Forging code

Bar code

Monel 400

N04400

28–34



2.5 max

2.0 max

0.5 max

63 min

A494 M35-1

ASTM B564

ASTM B164

Monel K-500

N05500

27–33

2.3–3.15

0.35–0.85

2.0 max

1.5 max

0.5 max

63 min

/

ASTM B865

ASTM B865



Monel Alloy 400 is widely used in marine applications. While alloy 400 products exhibit very low corrosion rates in flowing seawater, stagnant conditions have been shown to induce crevice and pitting corrosion. Alloy 400 is also resistant to stress corrosion cracking and pitting in most fresh and industrial waters.



Monel Alloy K500 retains the excellent corrosion resistance characteristic of 400 and with mechanical strength enhanced and hardness hardening, approximately 3 times on yield strength and 2 times on tensile strength



Applications of Monel Plug Valves

Generally, Monel valves can be used in the most demanding alkylation applications such as HF service. Monel valves are often used as chemical valves, petrochemical valves, desalination valves, shipbuilding valves, oil and gas valves, medical valves, and oxygen valves.


When Monel Plug Valves are applied in HF service, low emission, and double gland seal design is preferable and after installation, valves must be painted with caution paint, which is acid-base indicator (also known as pH indicators) are substances that change color with pH.
