Duplex Butterfly Valves

Duplex butterfly valves have good corrosion resistance and high strength performance because of their material character. So-called "duplex stainless steel" is the ferrite and the austenite probably respectively occupies in its melting organization one half. Even a small amount not less than 30% as well. Because the duplex stainless steel has the ferrite and the austenite elements, therefore it has merits that high intensity and bears the chloride stress corrosion performance which the ferritic stainless steel has, and fine tough and welding performance which the austenite stainless steel has.

Duplex steel valve's anti-chloride pitch corrosion, the slit corrosion and the stress corrosion performance are extremely superior, and the mechanical strength is high, bears weary and the attrition corrosion property is good, these merits which stainless steel all are unable to compare.

01/06
Duplex Butterfly Valves
02/06
Duplex Butterfly Valves
03/06
Duplex Butterfly Valves
04/06
Duplex Butterfly Valves
05/06
Duplex Butterfly Valves

Duplex Butterfly Valves Application

Duplex butterfly valves mainly apply in the neutral chloride medium. The valves widely apply in the oil refining industry, the petrochemical industry and the chemical industry, the petroleum and the gas industry, the paper pulp and the paper industry, the chemical fertilizer industry (urea industry, phosphate fertilizer industry), professions and so on food and drugs manufacture industry. It substitutes the austenite stainless steel valve, the application is day by day widespread.

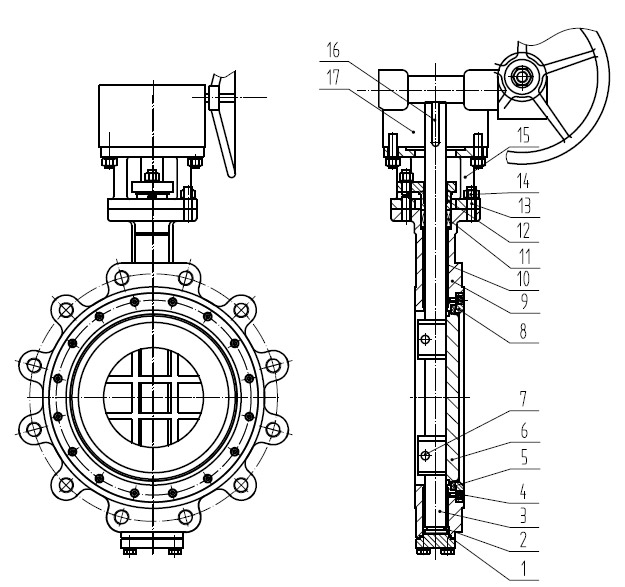

Duplex Butterfly Valves Structure (Duplex2205 double offset butterfly valve for example)

Duplex Butterfly Valves Structure


NO.

PARTS

MATERIAL

1

Gasket

PTFE

2

Split ring

A182 F51

3

Stem

A182 F51

4

Screw

A182 F51

5

Seat

PTFE/RPTFE

6

Disc

A890 4A

7

Pin

A182 F51

8

Seat retainer

A890 4A

9

Body

A890 4A

10

Bearing

PEEK

11

Packing

PTFE

12

Gland bushing

A182 F51

13

Double-end bolt

A193 B8M

14

Hexagon nut

A194 8M

15

Bracket

A351 CF8M

16

Key

UNS G10450

17

Gearbox device

CF8M / WCB



Key Features of Duplex Butterfly Valves

Since there are a variety of applications of duplex butterfly valves, why are they popular among all the valves. Here is a list of the main features of duplex butterfly valves for you to explore the reasons.

  • With a narrow profile, duplex butterfly valves can move without separating pipe system parts.

  • Duplex butterfly valves are able to throttle flow and numerous actuation methods are available.

  • Numerous actuation methods are available by duplex butterfly valves.

  • In large diameters, duplex butterfly valves have full stainless-steel bodies which are lightweight and corrosion-resistance.
