Stainless Steel Butterfly Valves

Stainless steel butterfly valves bringing light weight to applications with low cost, Weidouli High performance butterfly valves from 2" to 100".

01/06
Stainless Steel Butterfly Valves
02/06
Stainless Steel Butterfly Valves
03/06
Stainless Steel Butterfly Valves
04/06
Stainless Steel Butterfly Valves
05/06
Stainless Steel Butterfly Valves
06/06
Stainless Steel Butterfly Valves

Application Of Stainless Steel Butterfly Valves

Common applications for stainless steel butterfly valves include: utilities, pulp and paper, oil and gas production, fuel handling systems, marine, petrochemical processing, etc.

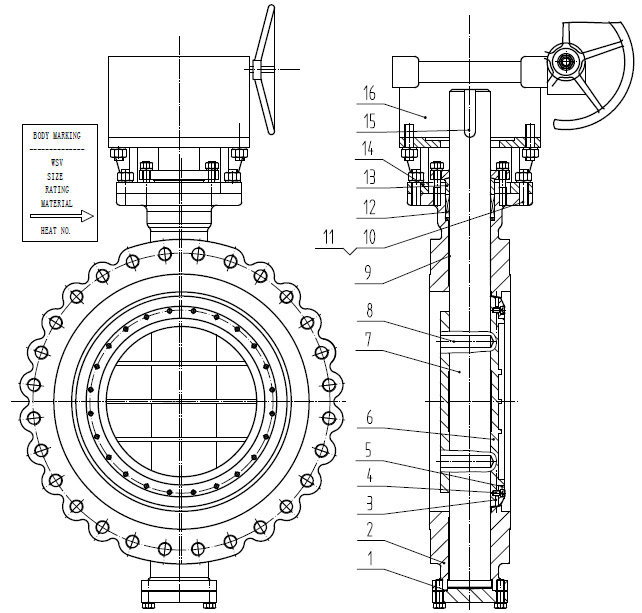

Stainless Steel Butterfly Valves Structure (SS316 double offset butterfly valve for example)

Stainless Steel Butterfly Valves Structure

NO.

   PARTS

MATERIAL

1

Gasket

Graphite

2

Body

A351 CF8M

3

Seat

316+graphite

4

Screw

SS316

5

Seat retainer

A182 F316

6

Disc

A351 CF8M

7

Stem

17-4PH

8

Pin

17-4PH

9

Bearing

316+graphite

10

Nut

A194 8

11

Stud

A193 B8

12

Packing

Graphite

13

Gland bushing

A182 F316

14

Bracket

A351 CF8

15

Key

UNS G10450

16

Gearbox device

CF8M / WCB
