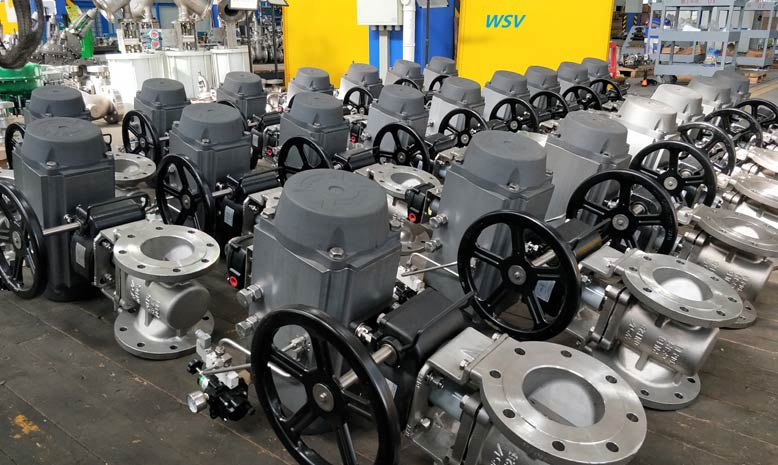

Stainless steel is a group of iron-based alloys that contain a minimum of approximately 11% chromium, a composition that prevents the iron from rusting and also provides heat-resistant properties. Weidouli not only manufactures exotic materials of plug valve, we are also producing stainless steel plug valve, which is commonly used for not very corrosive application.
Sizes DN200 and below are by investment to reduce machining process and expedite the delivery, which can meet with urgent need. In addition, Weidouli operates a big and dynamic inventory of stainless steel plug valves.
Size | ½" to 24" |
ASME Class | Class 150 to 600 |
Design Standard | API 599, ASME B 16.34 |
Casting | Investment Casting, Sand Casting |
NO. | Part name | Material |
1 | Body | ASTM A351-CF8, CF8M, CF3, CF3M |
2 | Sleeve | PTFE |
3 | Plug | ASTM A351-CF8, CF8M, CF3, CF3M |
4 | Gasket | Flexible graphite+stainless steel, PTFE |
5 | Adjusting gasket | ASTM A 182-F304, F316, F321, F304L, F316 |
6 | Cover | ASTM A351-CF8, CF8M, CF3, CF3M |
7 | Adjusting bolt | ASTM A193-B7, A320-B8, A193-B8M |
8 | Nut | ASTM A194-2H, A194-8, A194-8M |
9 | Bolt | ASTM A193-B7, A320-B8, A193-B8M |
10 | Wrench | ASTM A 182 F6a |
The materials of the parts and sizes of flanges can be reasonably configured according to the actual operation condition of the requirements of the customers, so as to meet the various needs of engineering.
